Premier Locker Series

Cutting-Edge Technology

The Package Concierge® Premier Locker Series is a high-quality, easy-to-use automated locker system, with cutting-edge technology at its core. Utilizing heavy-gauge steel material, the unique door design and electronic latching mechanism results in high level break-in resistance providing a durable and secure solution.

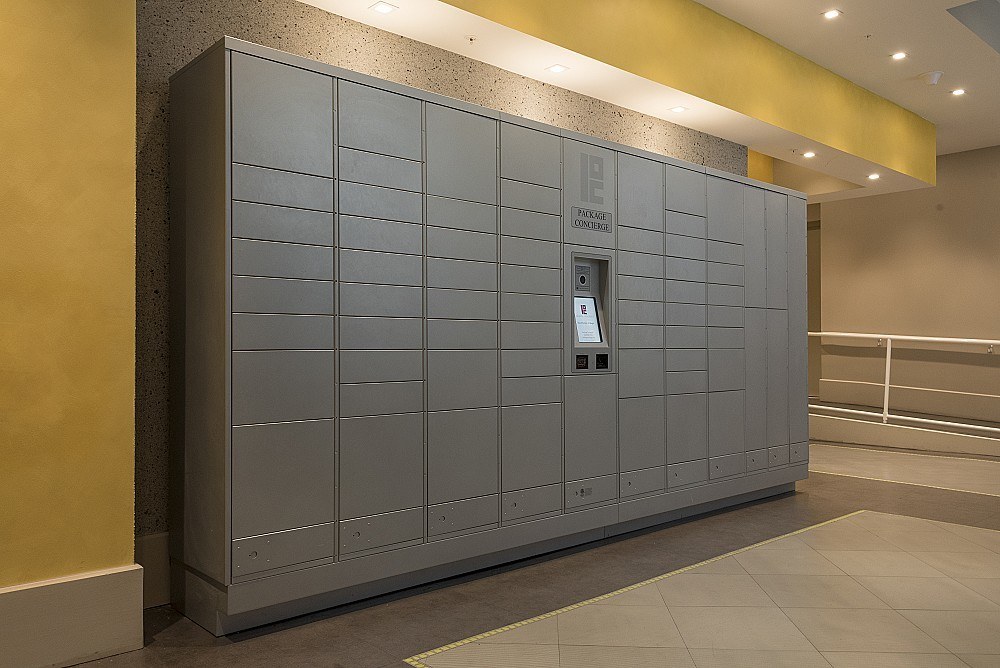

Locker system in a lobby area
Hallway lined with a locker system
Locker system room
Locker system and Florence mailboxes in a mailroom
Locker system room
Locker system and kiosk in a mailroom
Locker system
Locker system near elevator
L-shaped locker system
multiple Locker systems in a hallway
Locker system in a lobby area
Locker system with open compartments showing packages
Locker system room
Locker system room

This feature-rich solution, designed and built in America's Heartland, is the Architect and Designer choice offering an impressive asset to showcase in any setting.

Features

  • System design, construction and installation method offers built-in furniture appearance
  • Provides 24/7 user access to retrieve contents
  • Effective space utilization - tallest lockers (7') available in the industry
  • Single-column locker modules with eight (8) compartment sizes offer the most flexible, configurable system design options
  • Dry Cleaning locker modules with two (2) compartment sizes and clothes hanger mechanisms also available
  • Data rich reports, delivery history and security information through an intuitive dashboard
  • Customizable installation options such as liner, U-shape, L-shape, and split system configuration


Specifications

  • 8”x10” commercial grade touch screen interface with RFID reader, built-in camera, and barcode reader
  • Parcel Module Controller (PMC) with uninterruptable power supply (UPS)
  • Ethernet port for communications with remote management system
  • Proprietary Latching System
  • All steel construction available in eight (8) durable powder coat finishes or with custom color and/or wrap
  • Uses 120V A/C, 15 amp circuit
  • Maintenance access to all compartments from master compartment


Premier Package Locker Modules


EX7Kiosk-PC

EX7M2

EX7M3

EX7M4

EX7M6A

EX7M6B

EX7M8

EX7M10



Module Dimensions:
16-7/16" W x 86-11/16" H x 23-3/4" D
Compartment Sizes Per Module:
13-1/2" W x 22-1/2" D x (see below)" H
  1. Model #
    Location
    One-High
    4.8" H
    Two-High
    ​10.2" H
    Three-High
    ​15.6" H
    Four-High
    ​21" H
    Five-High
    26.4" H
    Six-High
    31.8" H
    Seven-High
    37.2" H
    Total
    Compartments
  2. EX7Kiosk-PC
    Indoor
    0
    0
    0
    2
    0
    0
    0
    2
  3. EX7M2
    Indoor
    0
    0
    0
    0
    0
    1
    1
    2
  4. EX7M3
    Indoor
    0
    0
    0
    2
    1
    0
    0
    3
  5. EX7M4
    Indoor
    0
    0
    3
    1
    0
    0
    0
    4
  6. EX7M6A
    Indoor
    3
    1
    1
    0
    1
    0
    0
    6
  7. EX7M6B
    Indoor
    0
    5
    1
    0
    0
    0
    0
    6
  8. EX7M8
    Indoor
    5
    1
    2
    0
    0
    0
    0
    8
  9. EX7M10
    Indoor
    8
    1
    1
    0
    0
    4
    0
    10
Module Dimensions:
16-7/16" W x 86-11/16" H x 23-3/4" D
Compartment Sizes Per Module
13-1/2" W x 22-1/2" D x (see below)" H
Model # Location One-High
4.8"H
Two-High
10.2"H
Three-High
15.6"H
Four-High
21"H
Five-High
26.4"H
Six-High
31.8"H
Seven-High
37.2"H
Total
Compartments
EX7Kiosk-PC Indoor 0 0 0 2 0 0 0 2
EX7M2 Indoor 0 0 0 0 0 1 1 2
EX7M3 Indoor 0 0 0 2 1 0 0 3
EX7M4 Indoor 0 0 3 1 0 0 0 4
EX7M6A Indoor 3 1 1 0 1 0 0 6
EX7M6B Indoor 0 5 1 0 0 0 0 6
EX7M8 Indoor 5 1 2 0 0 0 0 8
EX7M10 Indoor 8 1 1 0 0 0 0 10

EXD7M5

EXD7M6

Premier Package Locker Modules

Module Dimensions:
16-7/16" W x 86-11/16" H x 23-3/4" D
Compartment Sizes Per Module:
7.8" W x 22.5" D x (see below)" H
  1. Model #
    Locker Type
    Six-High
    31.8" H
    Seven-High
    ​37.2" H
    Thirteen-High
    ​69.5" H
    Total
    Compartments
  2. EXD7M5
    Dry Cleaning
    2
    2
    1
    5
  3. EXD7M6
    Dry Cleaning
    3
    3
    0
    6

* Hanger Kit Included in Each Compartment

Module Dimensions:
16-7/16" W x 86-11/16" H x 23-3/4" D
Compartment Sizes Per Module
Hanger Kit Included in Each Compartment
Model # Locker Type Six-High Seven-High Thirteen-High
EXD7M5 Dry Cleaning 2 2 1
EXD7M6 Dry Cleaning 3 3 0
Compartment Sizes: 7.8" W x 22.5" D 31.8" H 37.2" H 69.5" H

Configure Your Perfect System

Use our Configurator to design your own Package Concierge® locker system

Start Your Design

Locker system kiosk with open compartments

Designed to easily integrate with your systems

Utilizing our 25+ years experience, we've designed our software to provide you with a means to easily integrate, monitor, track, and report on all transactions.

Our industry unique mobile app enables you to reset pins, push notifications, monitor package activity and more, right from the palm of your hand!

The intuitive management portal provides plenty of reporting and tracking options; all supported by 24/7 customer service.

As an ETL Listed product, tested and certified by Intertek, the system has been thoroughly vetted to be in compliance with the National Electrical Code and National Fire Protection Association, providing additional peace of mind.

Markets

By working closely with our customers, we have developed solutions for every market.

Our product experts stand ready to assist you in selecting the right configuration for your setting, facilitating your installation, and helping you integrate this automated package management solution into your system operation.
