Indoor Parcel Locker Solutions

Premier Locker Series

Cutting-Edge Technology

The Package Concierge® Premier Locker Series is a high-quality, easy-to-use automated locker system, with cutting-edge technology at its core. Utilizing heavy-gauge steel material, the unique door design and electronic latching mechanism result in high-level, break-in resistance providing a durable and secure solution.

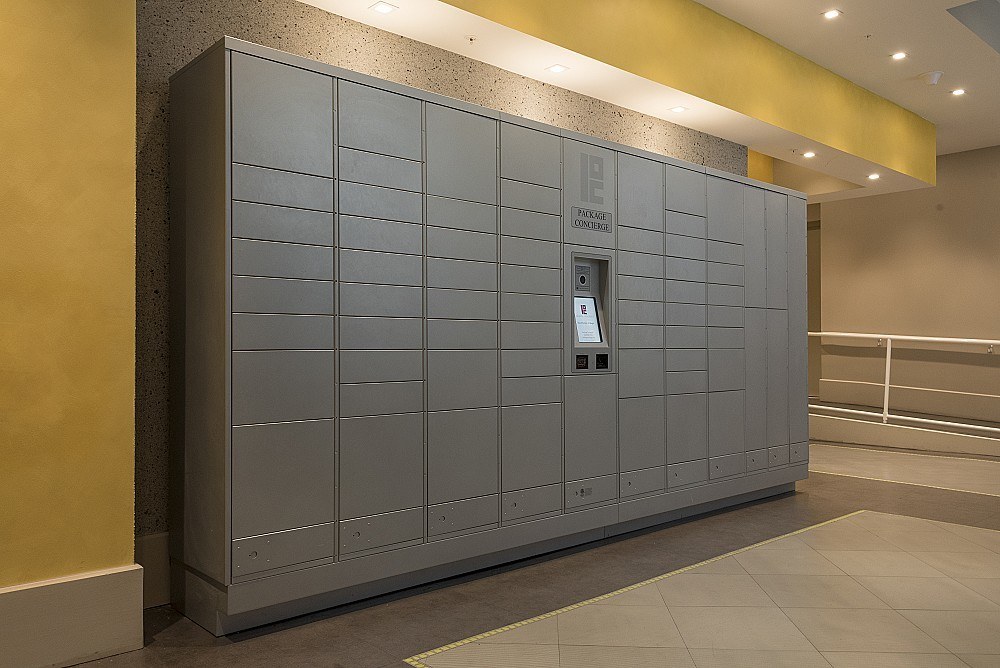

Lobby with Automated Package Locker System

Smart Package Locker System in white Powder coat

Open Package Locker Compartment with Parcel

Package Locker Compartments Open to Reveal Multiple Package Deliveries

Corp Office Automated Package Locker System

Woman Retrieving Box from Package Locker

Woman about to Access Smart Package Lockers

Black Powder Coat Package Concierge Smart Locker

Automated Package Lockers for Apartments

Woman Retrieving Parcel from Package Lockers

Woman Retrieving Package from White Powder Coat Smart Locker

Electronic Package Lockers in Silver Speck Powder Coat Finish

Woman Retrieving Packages from Parking Garage Locker Installation

This feature-rich solution, designed and built in America’s Heartland, is the Architect and Designer choice offering an impressive asset to showcase in any setting.

Features

System design, construction and installation method offers built-in furniture appearance
Provides 24/7 user access to retrieve contents
Effective space utilization – tallest lockers (7′) available in the industry
Single-column indoor parcel locker modules with eight (8) compartment sizes offer the most flexible, configurable system design options
Dry Cleaning locker modules with two (2) compartment sizes and clothes hanger mechanisms also available
Data rich reports, delivery history and security information through an intuitive dashboard
Customizable installation options such as liner, U-shape, L-shape, and split system configuration

Specifications

8”x10” commercial grade touch screen interface with RFID reader, built-in camera, and barcode reader
Parcel Module Controller (PMC) with uninterruptable power supply (UPS)
Ethernet port for communications with remote management system
Proprietary Latching System
All steel construction available in eight (8) durable powder coat finishes or with custom color and/or wrap
Uses 120V A/C, 15 amp circuit
Maintenance access to all compartments from master compartment

Documents

Download Premier BIM/Revit

Premier Indoor Parcel Locker Modules

EX7Kiosk-PC

EX7M2

EX7M3

EX7M4

EX7M6A

EX7M6B

EX7M8

EX7M10

Model #

Location

One-High
4.8" H

Two-High
10.2" H

Three-High
15.6" H

Four-High
21" H

Five-High
26.4" H

Six-High
31.8" H

Seven-High
37.2" H

Total
Compartments
EX7Kiosk-PC

Indoor

0

0

0

2

0

0

0

2
EX7M2

Indoor

0

0

0

0

0

1

1

2
EX7M3

Indoor

0

0

0

2

1

0

0

3
EX7M4

Indoor

0

0

3

1

0

0

0

4
EX7M6A

Indoor

3

1

1

0

1

0

0

6
EX7M6B

Indoor

0

5

1

0

0

0

0

6
EX7M8

Indoor

5

1

2

0

0

0

0

8
EX7M10

Indoor

8

1

1

0

0

4

0

10

Module Dimensions: 16-7/16" W x 86-11/16" H x 23-3/4" D		Compartment Sizes Per Module 13-1/2" W x 22-1/2" D x (see below)" H
Model #	Location	One-High 4.8"H	Two-High 10.2"H	Three-High 15.6"H	Four-High 21"H	Five-High 26.4"H	Six-High 31.8"H	Seven-High 37.2"H	Total Compartments
EX7Kiosk-PC	Indoor	0	0	0	2	0	0	0	2
EX7M2	Indoor	0	0	0	0	0	1	1	2
EX7M3	Indoor	0	0	0	2	1	0	0	3
EX7M4	Indoor	0	0	3	1	0	0	0	4
EX7M6A	Indoor	3	1	1	0	1	0	0	6
EX7M6B	Indoor	0	5	1	0	0	0	0	6
EX7M8	Indoor	5	1	2	0	0	0	0	8
EX7M10	Indoor	8	1	1	0	0	0	0	10

EXD7M5

EXD7M6

Premier Indoor Parcel Locker Modules

Module Dimensions:
16-7/16" W x 86-11/16" H x 23-3/4" D

Compartment Sizes Per Module:
7.8" W x 22.5" D x (see below)" H

Model #

Locker Type

Six-High
31.8" H

Seven-High
37.2" H

Thirteen-High
69.5" H

Total
Compartments
EXD7M5

Dry Cleaning

2

2

1

5
EXD7M6

Dry Cleaning

3

3

0

6

* Hanger Kit Included in Each Compartment

Module Dimensions: 16-7/16" W x 86-11/16" H x 23-3/4" D		Compartment Sizes Per Module Hanger Kit Included in Each Compartment
Model #	Locker Type	Six-High	Seven-High	Thirteen-High
EXD7M5	Dry Cleaning	2	2	1
EXD7M6	Dry Cleaning	3	3	0
Compartment Sizes: 7.8" W x 22.5" D		31.8" H	37.2" H	69.5" H

Configure Your Perfect System

Use our Configurator to design your own Package Concierge® indoor parcel locker system

START YOUR DESIGN

Available Colors

Our Premier Series is available in these eight architectural powder coat color finishes.

Color swatches shown are for reference only and may vary slightly from the finished product. Textures will be organic in nature.

Antique Bronze

Black

Dark Bronze

Gold Speck

Postal Grey

Sandstone

Silver Speck

White

*Rollover swatches above to view colors on Premier image

Designed to easily integrate with your systems

Utilizing our 25+ years experience, we’ve designed our software to provide you with a means to easily integrate, monitor, track, and report on all transactions.

Our industry-unique mobile app enables you to reset pins, push notifications, monitor package activity, and more, right from the palm of your hand!

The intuitive management portal provides plenty of reporting and tracking options; all supported by 24/7 customer service.

As an ETL Listed product, tested and certified by Intertek, the modular locker system has been thoroughly vetted to be in compliance with the National Electrical Code and National Fire Protection Association, providing additional peace of mind.

Markets

By working closely with our customers, we have developed solutions for every market.

Multifamily

Retail

University

Office

Our product experts stand ready to assist you in selecting the right configuration for your setting, facilitating your installation, and helping you integrate this automated package management solution into your system operation.
