Modular Design
The modular design of the Package Concierge® Express Locker Series easily allows the kiosk module to be used as a standalone system, or grouped with other modules to build a larger solution. Installation of these completely contained modules does not require floor/base anchoring and leveling feet make it quick and easy to place.
With 24/7 access to the modular locker system, users no longer have to retrieve items during prescribed timeframes.
Features
- Provides 24/7 user access to retrieve contents
- Double-column locker modules with six (6) compartment sizes
- Leveling feet for ease of installation
Dry Cleaning locker modules with two (2) compartment sizes and clothes hanger mechanisms also available
Data rich reports, delivery history and security information through an intuitive dashboard
Customizable installation options such as Linear, U-shape, L-shape, and split system configuration
Specifications
- Compact 7″x5″ color touch screen with barcode scanner and still camera
Parcel Module Controller (PMC) with uninterruptable power supply (UPS)
Ethernet port for communications with remote management system
Proprietary Latching System
All steel construction available in three (3) durable powder coat finishes or with custom color and/or wrap
Uses 120V A/C, 15 amp circuit
Maintenance access to all compartments from master compartment
Express Modules

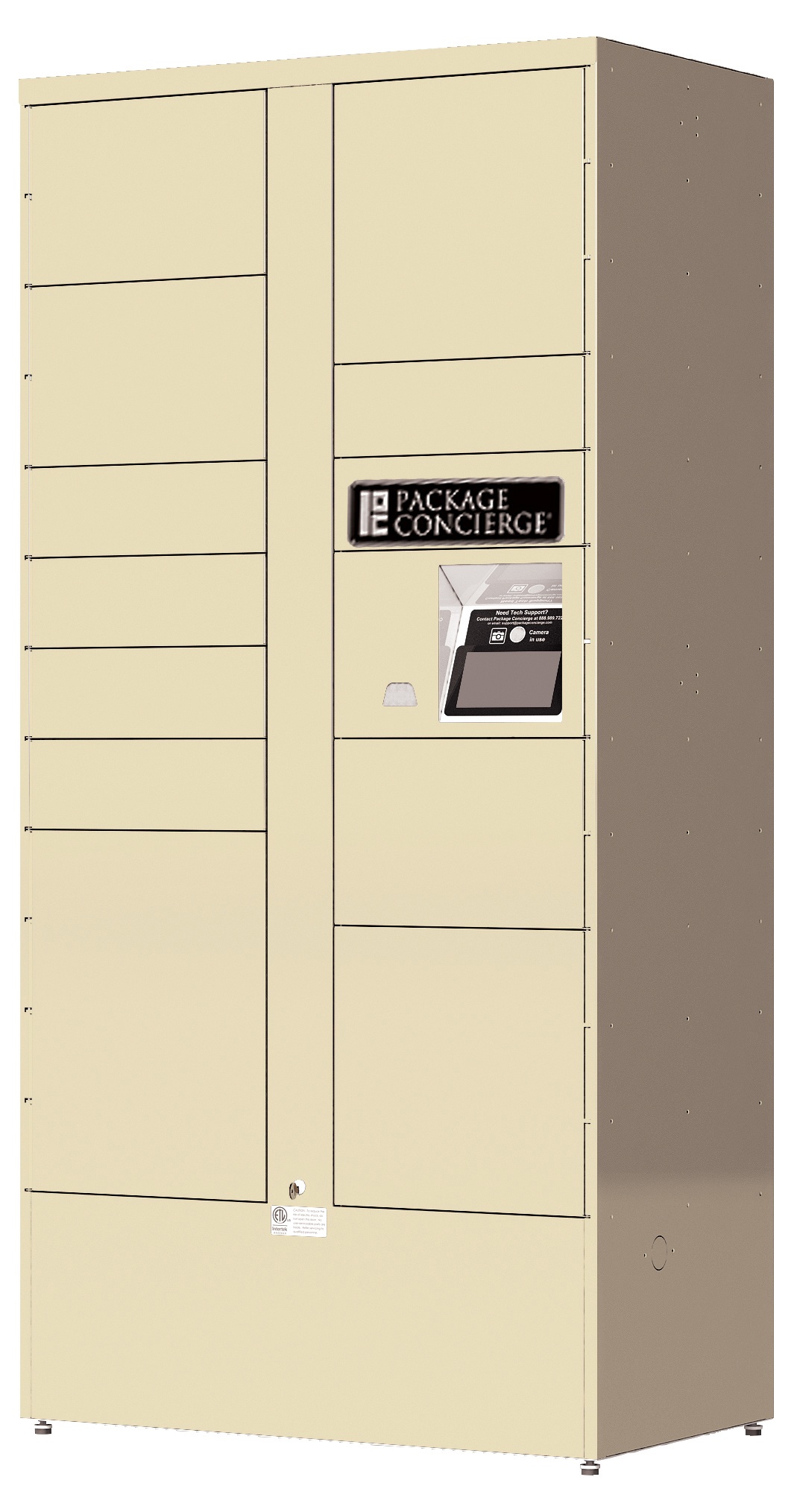

EXEK12A-PC

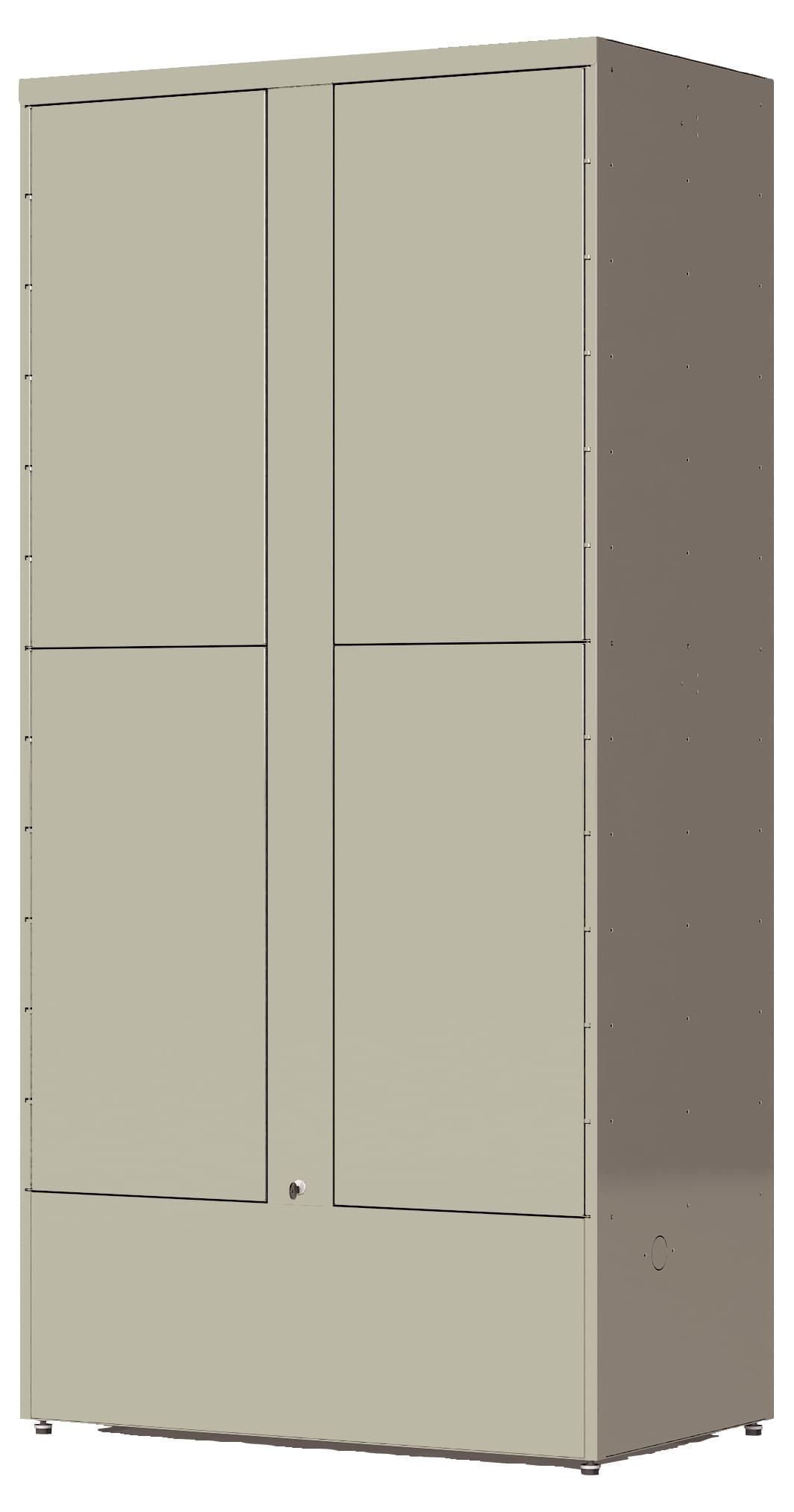

EXEM04A
EXEM08A

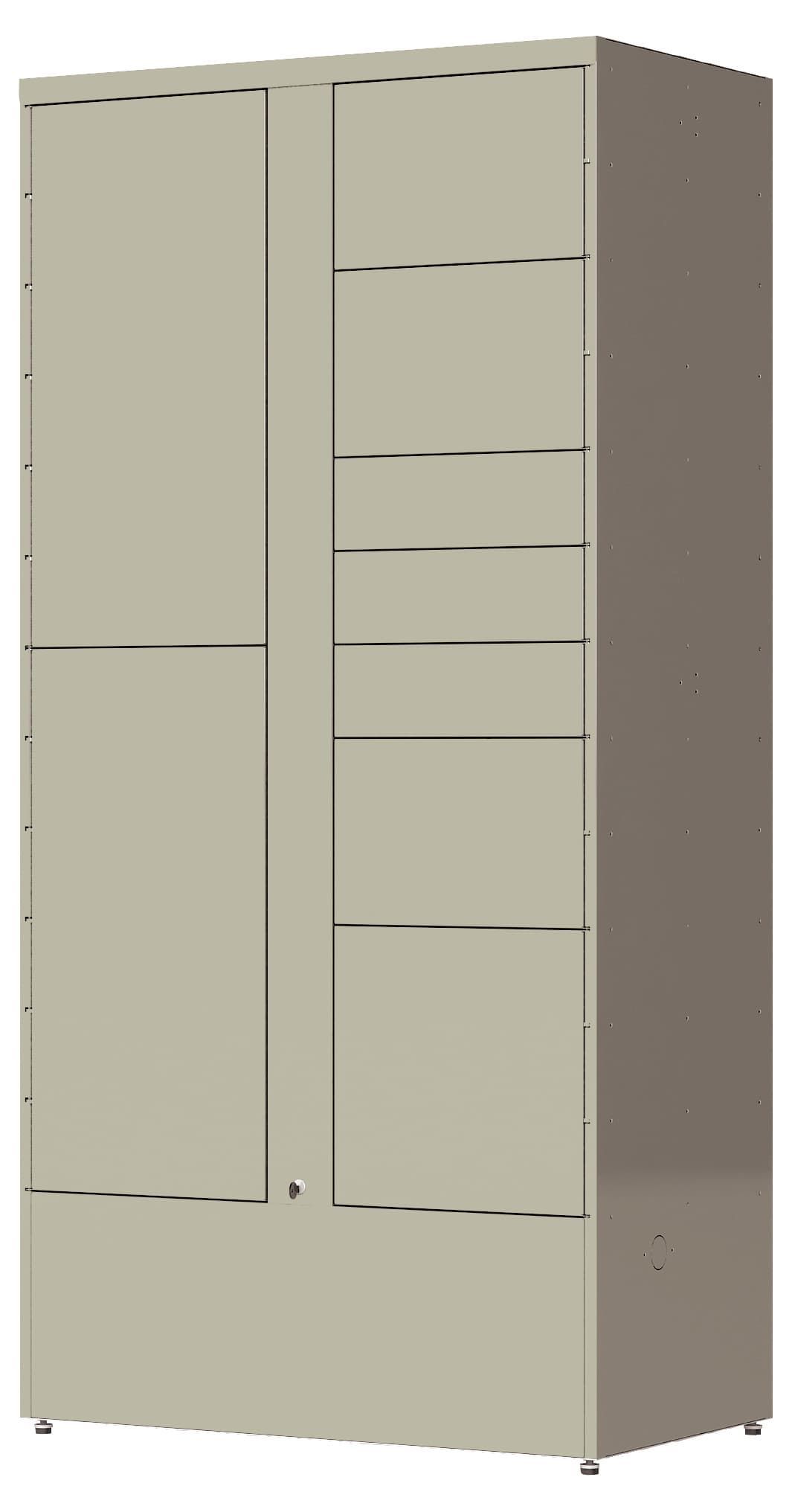

EXEM09A
EXEM10A
EXEM13A

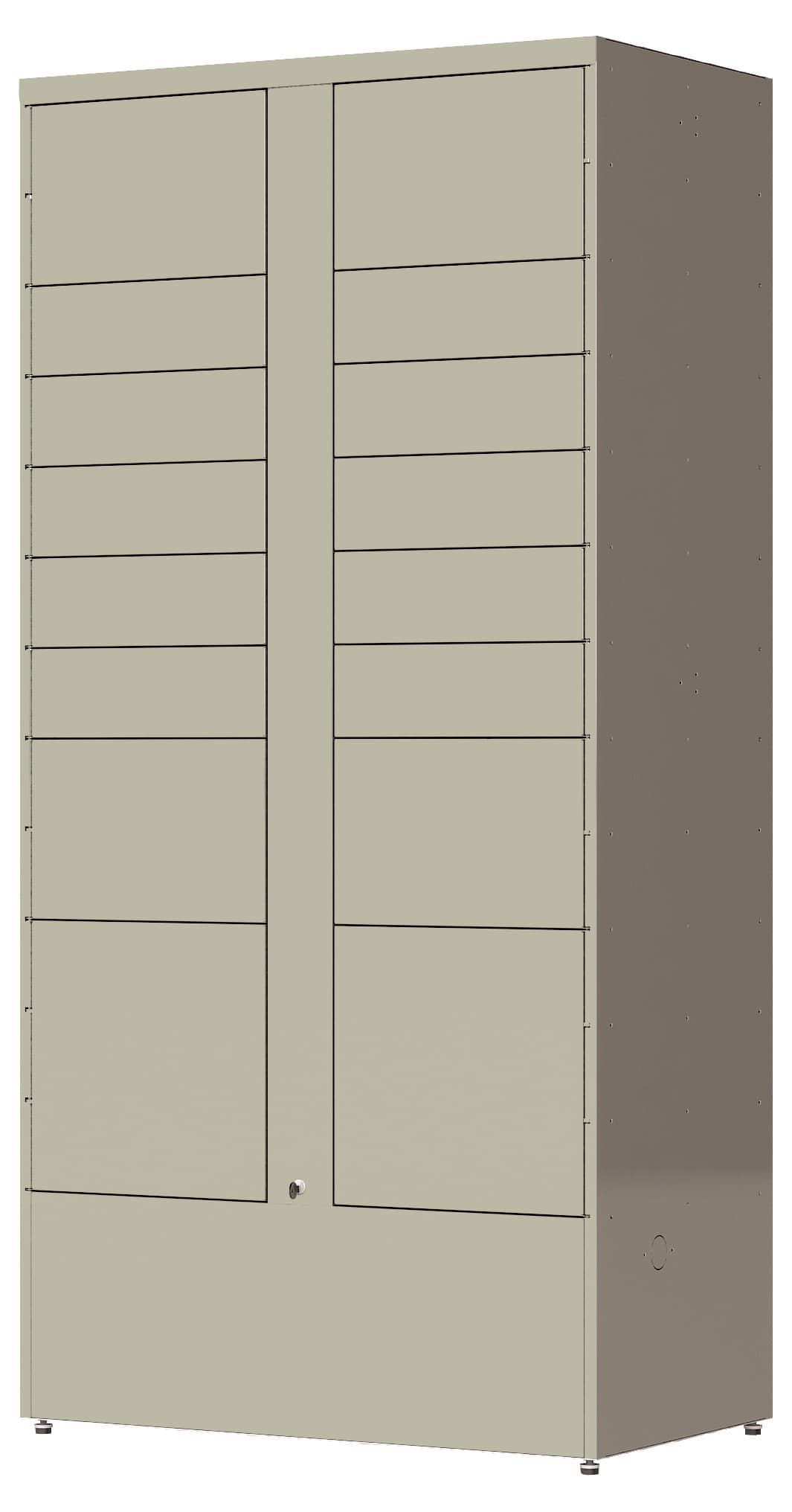

EXEM16A
EXEM04A-DCL
39" W x 82-1/4" H x 23-7/8" D
13-1/2" W x 22-1/2" D x (see below)" H
- CutsheetsModel #LocationOne-High
4.8" HTwo-High
10.2" HThree-High
15.6" HFour-High
21" HFive-High
26.4" HSix-High
31.8" HTotal
Compartments - EXEK12A-PCIndoor63210012
- EXEM04AIndoor0000044
- EXEM08AIndoor0080008
- EXEM09AIndoor3310029
- EXEM10AIndoor08101010
- EXEM13AIndoor65101013
- EXEM16AIndoor104200016
- EXEM04A-DCLIndoor0000044 (Dry Cleaning)
DWG| Module Dimensions: 39" W x 82-1/4" H x 23-7/8" D | Compartment Sizes Per Module 13-1/2" W x 22-1/2" D x (see below)" H | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cutsheets | Model # | Location | One-High 4.8" H | Two-High 10.2" H | Three-High 15.6" H | Four-High 21" H | Five-High 26.4" H | Six-High 31.8" H | Total Compartments |
 PDF | EXEK12A-PC | Indoor | 6 | 3 | 2 | 1 | 0 | 0 | 12 |
| PDF | EXEM04A | Indoor | 0 | 0 | 0 | 0 | 0 | 4 | 4 |
| PDF | EXEM08A | Indoor | 0 | 0 | 8 | 0 | 0 | 0 | 8 |
| PDF | EXEM09A | Indoor | 3 | 3 | 1 | 0 | 0 | 2 | 9 |
| PDF | EXEM10A | Indoor | 0 | 8 | 1 | 0 | 1 | 0 | 10 |
| PDF | EXEM13A | Indoor | 6 | 5 | 1 | 0 | 1 | 0 | 13 |
| PDF | EXEM16A | Indoor | 10 | 4 | 2 | 0 | 0 | 0 | 16 |
| PDF | EXEM04A-DCL | Indoor | 0 | 0 | 0 | 0 | 0 | 4 | 4 (Dry Cleaning) |
Available Colors
Our Express Series is available in these three architectural powder coat color finishes.
Color swatches shown are for reference only and may vary slightly from the finished product. Textures will be organic in nature.
Dark Bronze
Postal Grey
Sandstone
*Rollover swatches above to view colors on Express image
Designed to easily integrate with your systems
Utilizing our 25+ years experience, we’ve designed our software to provide you with a means to easily integrate, monitor, track, and report on all transactions.
Our industry-unique mobile app enables you to reset pins, push notifications, monitor package activity, and more, right from the palm of your hand!
The intuitive management portal provides plenty of reporting and tracking options; all supported by 24/7 customer service.
As an ETL Listed product, tested and certified by Intertek, the modular locker system has been thoroughly vetted to be in compliance with the National Electrical Code and National Fire Protection Association, providing additional peace of mind.
Markets
By working closely with our customers, we have developed solutions for every market.
Our product experts stand ready to assist you in selecting the right configuration for your setting, facilitating your installation, and helping you integrate this automated package management solution into your system operation.
